Tinplate steel sheet, refers to the cold rolled low carbon steel plate or steel strip with commercially pure electrolytic tin coating on both sides. The main effect of tin is to prevent corrosion and rusting. Tinplate has characteristics of corrosion resistance, high strength, and good ductility and etc… Tinplate is widely used in packaging industry, is the common international packaging materials

Product Specifications:

  1. Standard: GB2520-2000, JIS 3303-1997, DIN EN 10202, ASTM A623
  2. Grade: SPCC, SPCD, Q195, MR
  3. Tin Coating: 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4
  4. Surface: Bright, Stone, Silver, Matt
  5. Lacquering: clear, white, golden…
  6. Thickness: 0.15mm-0.8mm
  7. Width: 6mm-970mm
  8. Temper: T1-T5

Technical data :

Chemical Composition
SPCC ≤0.12 ≤0.30 ≤0.50 ≤0.025
Mechanical Properties
GRADE Yield Strength MPa Tensile Strength MPa Elongation %
SPCC 277 346 29-

Process and Facility

Coating Structure

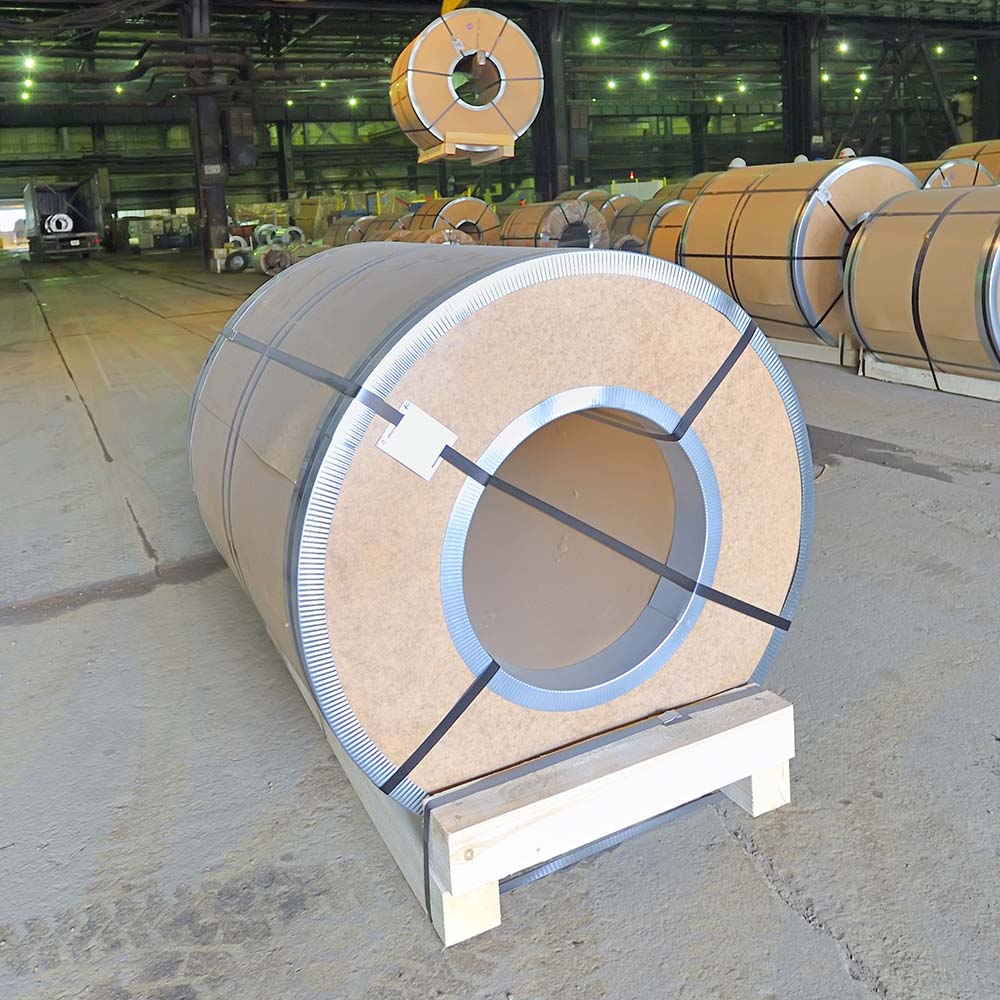

Packing & Delivery


Applications of Tinplate and TFS:

Consumer         Packaging and        Industrial  Packaging

TINPALTE ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
TFS TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans.


in Electronics Electrodes, Cable tape, Magnetic screen covers, etc.
in Engineering Automotive oil filters, Automotive air filters, Gaskets, etc.
in Construction Gas meter internal components, Heat exchangers, cookware, shelving, etc.
